Hydraulic Hose

Constant Working PressureHydraulic Industry Standard Suction & ReturnPush-Lok
Phosphate-EsterLow TemperatureTransportationAlternative/MarineRefrigerant

Hydraulic Industry Standard

Catalog 4400 Parker

View 4400 Catalog


See More Here

hose visual index link


See More Here

hose overview chart link

Parker 302 Worldwide
Parker 302

302 Worldwide - ISO 1436-1 TYPE 2SN / SAE J517 100R2AT / SAE J1942 / EN 853 TYPE 2SN
1,150 - 5,800 PSI

Parker’s 302 hose, a universal two-wire construction hose designed to accommodate global customer requirements, is manufactured to strict international quality specifications. Parker’s 302 offers customers consistency of performance combined with continuous availability anywhere in the world. It offers a high working pressure, long service life and a wide fluid compatibility.

Technical Data
43 Series
30 Series
Full Catalog

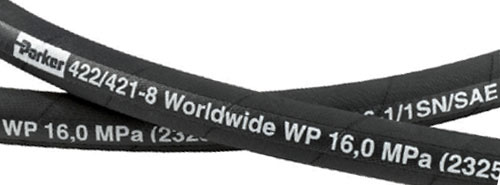

Parker 422 - Worldwide
Parker 422 - Worldwide

422 - Worldwide - ISO 1436-1 TYPE 1SN / SAE J517 100R1AT / SAE J1942 / EN 853 TYPE 1SN
575 - 3,250 PSI

Parker’s worldwide hose line is designed to accommodate global customer requirements. Manufactured to strict international specifications, 422 hose offers customers consistency of performance combined with improved availability anywhere in the world.

Technical Data
parker 43 series
42series Parker
Full Catalog



Parker 426

426 - High Temperature - SAE J517 100R1AT / SAE J1942
375 - 2,750 PSI

Parker’s 426 hose is a hydraulic industry standard hose that has a pressure range of 375-2750 psi, which is designed for high-temperature applications up to 302°F. The 426 hose is designed, built, and tested to meet SAE J517 100R1AT and SAE J1942 specifications.

Technical Data
parker 43 series
Full Catalog



Parker 436

436 Compact High Temperature - ISO 11237 TYPE R16 / SAE J517 100R16
2,000 - 4,000 PSI

With one-half the minimum SAE bend radius and a smaller hose O.D., 436 hose has the flexibility to work in almost any application – including tight spots. Engineered to withstand high pressure within a wide range of working temperatures, Parker’s 436 hose is not only versatile, but dependable over a long hose life. For quality, service, and value, there’s simply no match.

Technical Data
43 Series
42 Series
Full Catalog



Parker 471TC_ToughCover

471TC Twin Tough Cover - ISO 11237 TYPE 2SC / SAE J1942 / EN 857 TYPE 2SC
4,250 - 5,000 PSI

Twin Tough hoses eliminate the labor and material costs required to manually bundle two separate hoses using tie straps or plastic sleeves. Plus, Parker’s Twin Tough saves valuable time in the field.

Technical Data
parker 43 series
Full Catalog



Parker 471ST and TC
Parker 471ST
Parker 471TC

471TC/ST – Tough/Super Tough Cover - ISO 11237 TYPE 2SC / SAE J1942 / EN 857 TYPE 2SC
2,500 - 5,800 PSI

Parker’s 471TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-5800 psi, with a synthetic rubber inner tube which provides wide fluid compatibility. The two-wire braided construction offers more flexibility than the standard spiral counterpart in order to fit your needs..

Technical Data
parker 43 series
Full Catalog


Parker 472TC

472TC Tough Cover - SAE J1942
1,300 - 2,250 PSI

Parker’s 472TC hose is a hydraulic industry standard hose that has a pressure range of 1300-2250 psi, which allows for one to meet the specifications of any task at hand. The 472TC is designed, built, and tested to meet SAE J1942 specifications. The two-wire braided construction offers more flexibility than the standard spiral counterpart in order to fit your needs. The synthetic rubber inner tube provides a wide range of fluid compatibility.

Technical Data
parker 43 series
Full Catalog

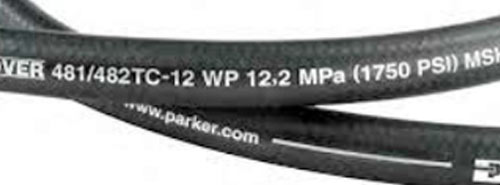

Parker 482 ST and TC
Parker 482ST
Parker 482TC

482TC/ST – Tough/Super Tough Cover - ISO 1436-1 TYPE 1SN / SAE J517 100R1AT / EN 853 TYPE 1SN
1,275 - 3,250 PSI

Parker’s 482 hose is a hydraulic industry standard hose that has a pressure range of 1275-3250 psi, with a synthetic rubber inner tube which provides wide fluid compatibility.

Technical Data
parker 43 series
42series Parker
Full Catalog

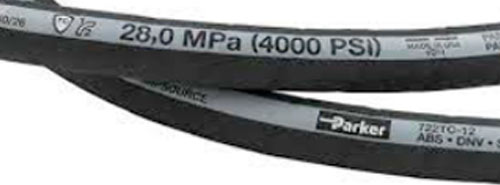

Parker 722TC

Parker 722ST
Parker 722

722TC/ST – Tough/Super Tough Cover - ISO 3862-1 TYPE R12 / SAE J517 100R12 / SAE J1942 / EN 856 TYPE R12
2,500 - 3,000 PSI

722TC / ST hose was designed for high performance. Its resilient 4-wire spiral construction and Parker’s leading ToughCover and SuperTough Covers provide unmatched abrasion resistance. It is also one-half the bend radius of SAE 100R12 hose, making it easy to install and reducing the amount of hose needed and its synthetic rubber inner tube provides a wider range of fluid compatibility.

Technical Data
parker 43 series
parker 71 series
Full Catalog



Parker 777

777 - Reduced OD & Weight - ISO 18752
4,000 PSI

Parker’s 777 Hose offers innovative and proprietary features, delivering 4,000 psi and greater advantages in routing and installation. Compared with conventional spiral hose, Parker’s 777 hose is lighter in weight and has a smaller outside diameter than other hoses on the market.

Technical Data
parker 43 series
Full Catalog


Jack Hose

JK – Jack Hose - ISO 1436-1 TYPE 2SN / SAE J517 100R2AT / EN 853 TYPE 2SN / NFPA 1936 / EES 116-4
10,000 – 10,500 PSI

Parker Jack Hose should be your choice for use on hydraulically powered jacking equipment. From its engineered inner tube, and twin braids of high-tensile steel reinforcement, to its durable outer cover, our hydraulic Jack Hose has been designed for high performance, easily supporting the rigors of high tonnage hydraulic jack applications. Jack Hose comes with the added benefits of the world’s largest distributor network and Parker’s unequalled technical services.

Technical Data
43 Series
Full Catalog
