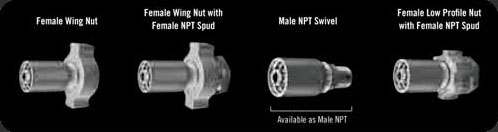

Coupling assembly crimps permanently onto hose; forms a tight crimp that reduces leaks and eliminates bulky bolt clamps while reducing potential for damage from snagging on personnel or property.
For more information, view the ContiTech Industrial Hose Catalog (PDF - 6.15 MB).
Hose Description | Hose Product Code | Hose ID | Female Ground Joint Low Profile Unit | Female Ground Joint Wing Nut | Male NPT | Male NPT Swivel; | Female Spud | Crimp DIA. | Goodyear Engineered Products Perma-Crimp™ | |
---|---|---|---|---|---|---|---|---|---|---|
Die Set | Approx Setting | |||||||||
Flexsteel® 250 (Black) | 539-070-024 | 3/4" | RGJS-3V | GJS-3V | IMS-3V | IMS-3VSW | GFS-3 | 1.440" | 34 | 2.6 |
Flexsteel® 250 (Red) | 539-076-024 | 3/4" | RGJS-3V | GJS-3V | IMS-3V | IMS-3VSW | GFS-3 | 1.440" | 34 | 2.6 |
Flexsteel® 250 (Black) | 539-070-032 | 1" | RGJS-4V | GJS-4V | IMS-4V | IMS-4VSW | GFS-3 | 1.925" | 45 | 3.9 |
Flexsteel® 250 (Red) | 539-076-032 | 1" | RGN-4 | GN-4 | IMS-4G* | N/A | GFS-4 | 1.660" | 41 | 1.16 |
Flexsteel® 250 (Red Wrapped) | 536-476-024 | 3/4" | RGJS-3V | GJS-3V | IMS-3V | IMS-3VSW | GFS-3 | 1.440" | 34 | 2.6 |
Flexsteel® 250 EPDM 20 (Red) | 539-486-024 | 3/4" | RGJS-3V | GJS-3V | IMS-3V | IMS-3VSW | GFS-3 | 1.420" | 34 | 2.1 |
